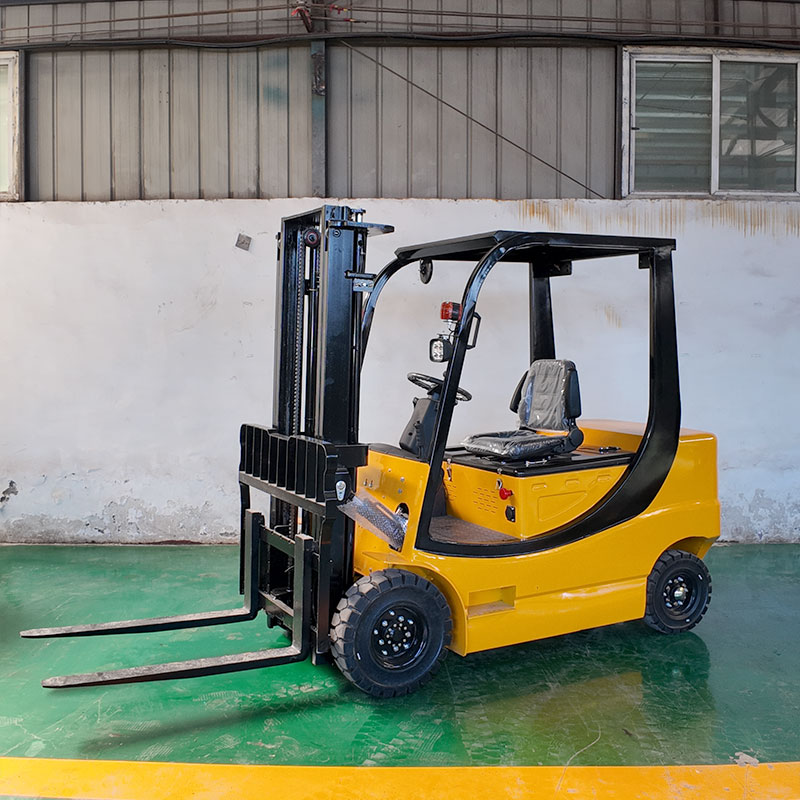

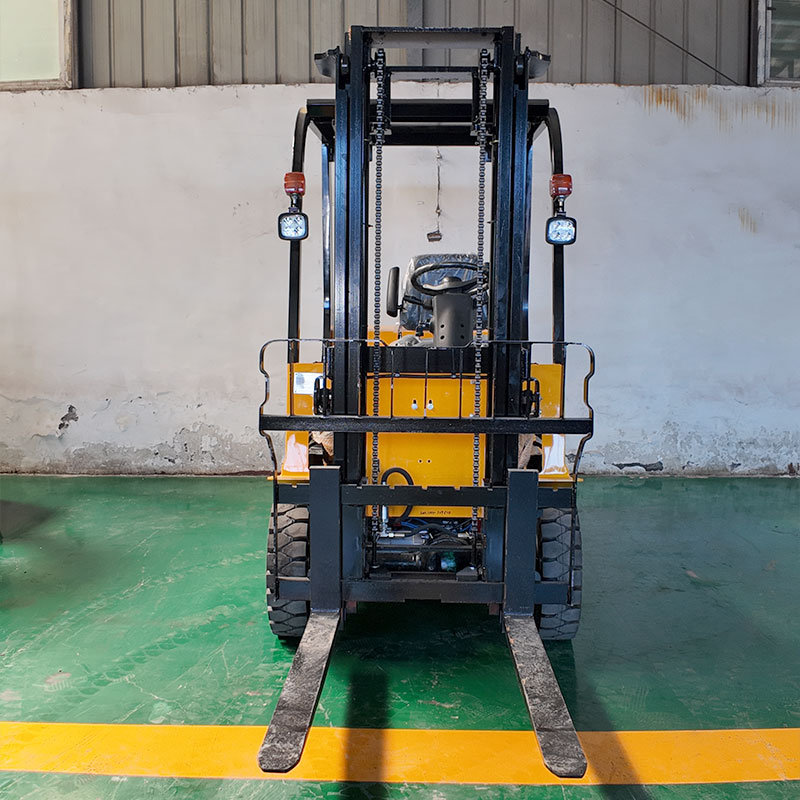

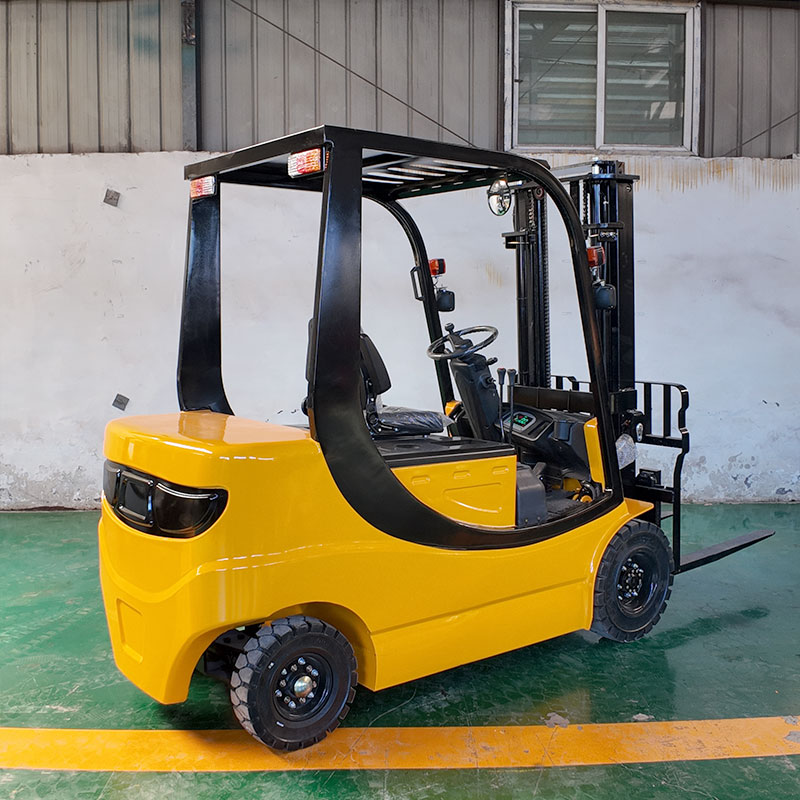

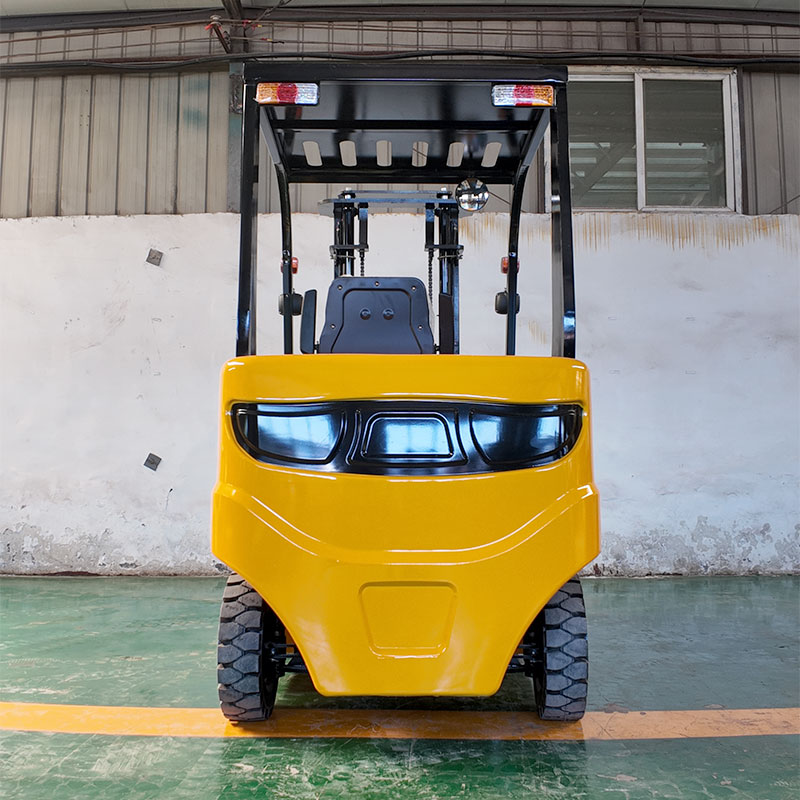

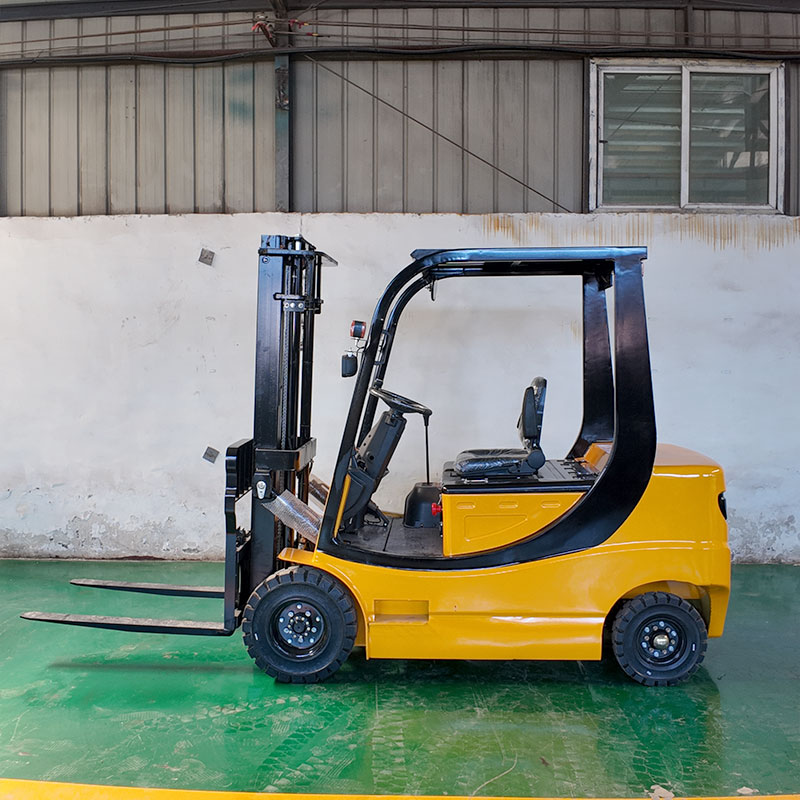

This 2.5T‑S electric forklift comes with 2500kg rated lifting capacity, 3000 mm maximum lifting height, AC5.0 kW lift and drive motors, 60V 70Ah Chaowei battery with 10 pieces of batteries, hydraulic power‑assist steering, 1950 mm minimum turning radius and adjustable travel & lifting speeds for efficient warehouse material‑handling operations.
| ITEM | 2.5T‑S |
|---|---|
| Rated lifting capacity | 2500 kg |
| Overall length (without forks) | 2450 kg |
| Overall length (with forks) | 3520 kg |
| Overall width | 1150 mm |
| Overall height (without mast raised) | 2100 mm |
| Overall height (with overhead guard) | 2080 mm |
| Overall height (maximum working height) | 3750 mm |
| Wheelbase | 1620 mm |
| Minimum ground clearance at bottom of mast (empty/loaded) | 110 mm |
| Minimum ground clearance at centre of chassis (unloaded/loaded) | 140 mm |
| Mast | 120mm H |
| Maximum lifting height (unloaded) | 3000 mm |
| Free lift height | – |
| Mast tilt angle (forward/backward) | 5°/13° |
| Total vehicle weight (standard, unloaded) | 3000 kg |
| Maximum lifting speed (unloaded, adjustable) | 140 mm/s |
| Maximum lifting speed (loaded, adjustable) | 160 mm/s |
| Minimum Turning Radius | 1950 mm |
| Maximum Operating Speed (Unloaded) (Adjustable) | 14 km/h |
| Maximum Operating Speed (Fully Loaded) (Adjustable) | 12 km/h |
| Maximum Gradeability (Fully Loaded) | 15 % |
| Maximum Gradeability (Unloaded) | 20 % |
| Load Center Distance | 500 mm |
| Front Wheel Specifications | 650‑10 |
| Rear Wheel Specifications | 500‑8 |
| Lift Motor Power | AC 5.0 KW |
| Drive Motor Power | AC 5.0 KW |
| Steering Type | Hydraulic Power‑assist |
| Charger Input Voltage | 220 V |
| Charging Time | 8‑10h |
| Battery Capacity | 70 Ah |
| Rated Voltage | 60 V |
| Battery Brand | Chaowei |
| Number of Batteries | 10 pcs |
