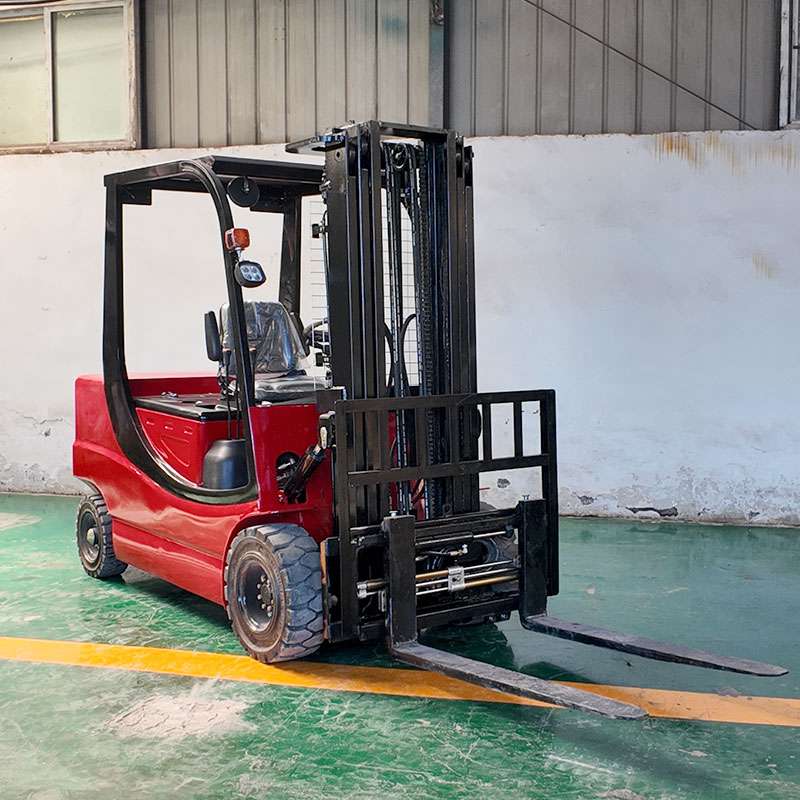

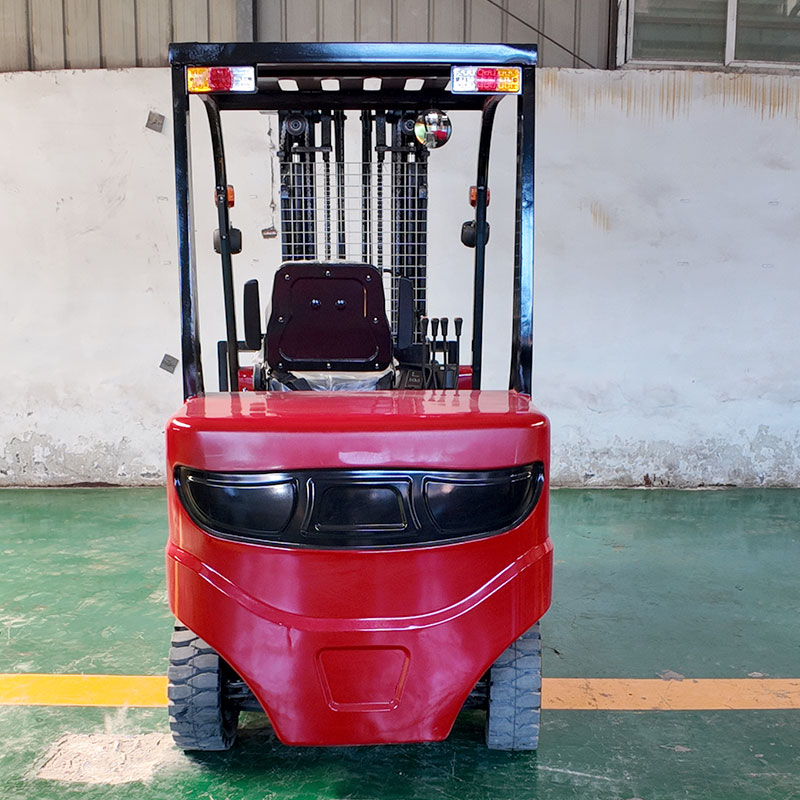

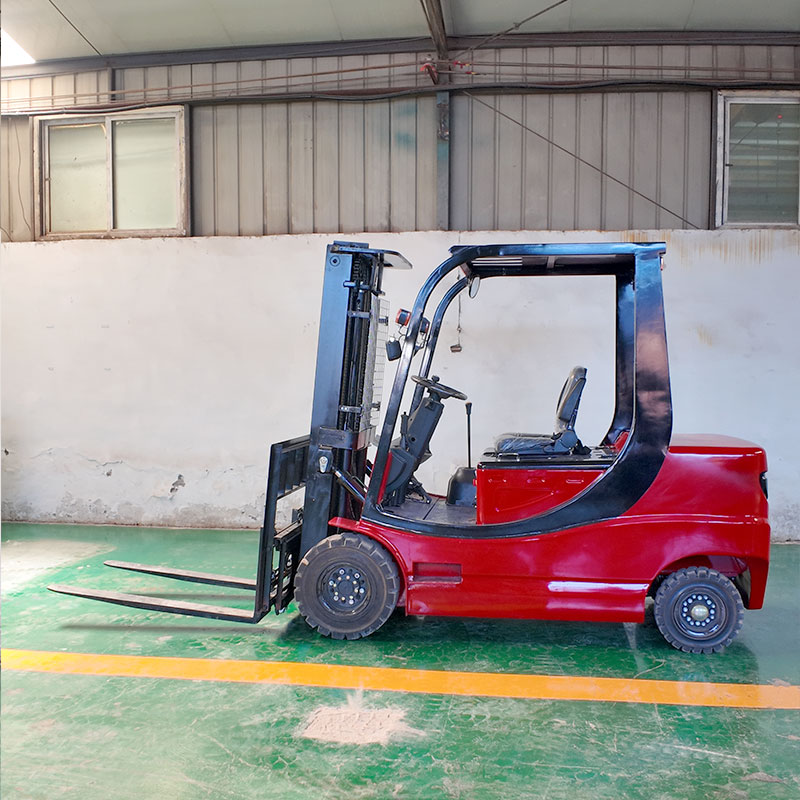

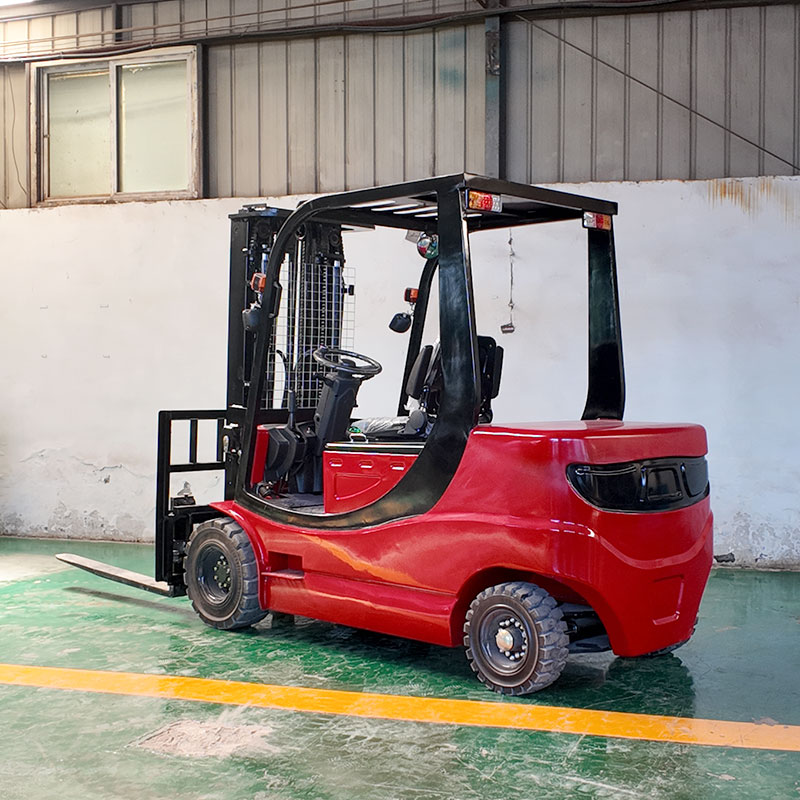

This 3T‑S electric forklift delivers 3000kg rated lifting capacity, 3000 mm maximum lifting height, powerful AC7.5 kW lift and drive motors, 60V 70Ah Chaowei battery, hydraulic power‑assist steering and 1950 mm minimum turning radius, featuring adjustable lifting and travel speeds for heavy‑duty warehouse material‑handling applications.
| ITEM | 3T‑S |
|---|---|
| Rated lifting capacity | 3000kg |
| Overall length (without forks) | 2550 kg |
| Overall length (with forks) | 3620 kg |
| Overall width | 1150 mm |
| Overall height (without mast raised) | 2100 mm |
| Overall height (with overhead guard) | 2080 mm |
| Overall height (maximum working height) | 3750 mm |
| Wheelbase | 1720 mm |
| Minimum ground clearance at bottom of mast (empty/loaded) | 120 mm |
| Minimum ground clearance at centre of chassis (unloaded/loaded) | 140 mm |

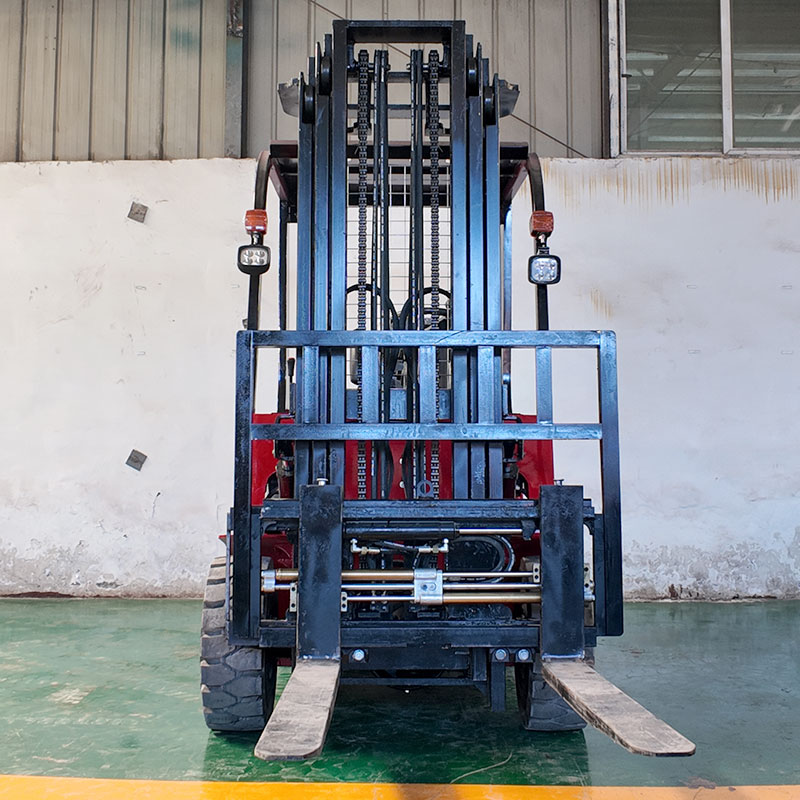

| Mast | 150mm H |
| Maximum lifting height (unloaded) | 3000 mm |
| Free lift height | – |
| Mast tilt angle (forward/backward) | 5°/13° |
| Total vehicle weight (standard, unloaded) | 3900 kg |
| Maximum lifting speed (unloaded, adjustable) | 160 mm/s |
| Maximum lifting speed (loaded, adjustable) | 180 mm/s |
| Minimum Turning Radius | 1950 mm |
| Maximum Operating Speed (Unloaded) (Adjustable) | 14 km/h |
| Maximum Operating Speed (Fully Loaded) (Adjustable) | 12 km/h |
| Maximum Gradeability (Fully Loaded) | 15 % |
| Maximum Gradeability (Unloaded) | 20 % |
| Load Center Distance | 500 mm |

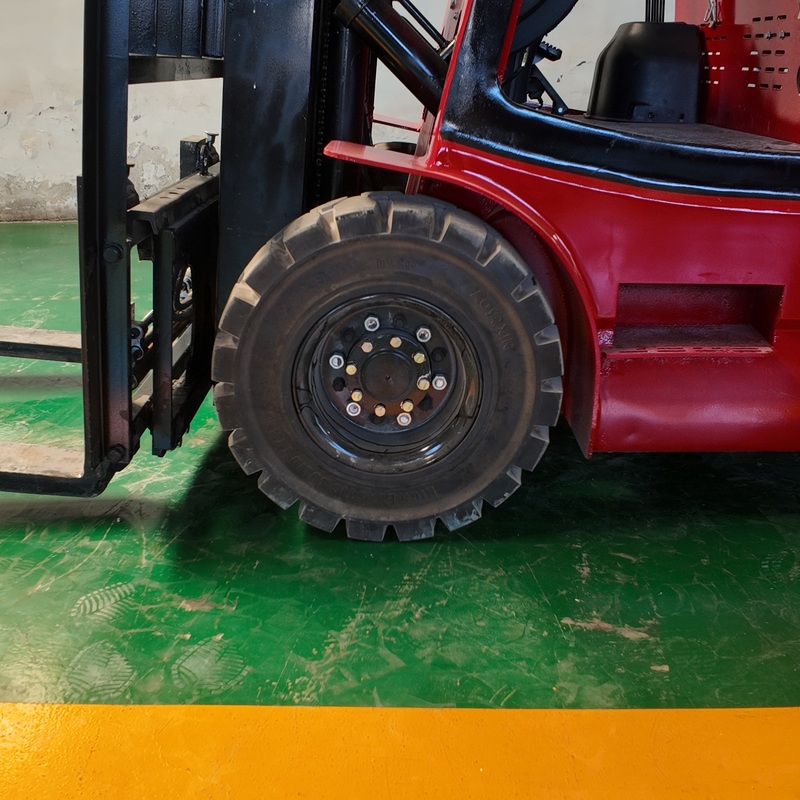

| Front Wheel Specifications | 650‑10 |
| Rear Wheel Specifications | 500‑8 |
| Lift Motor Power | AC 7.5 KW |
| Drive Motor Power | AC 7.5 KW |
| Steering Type | Hydraulic Power‑assist |
| Charger Input Voltage | 220 V |
| Charging Time | 8‑10h |
| Battery Capacity | 70 Ah |
| Rated Voltage | 60 V |
| Battery Brand | Chaowei |
| Number of Batteries | 10 pcs |
